Product Description
Mainly used for automobile interior ceiling made of PU foam sheet by rolling glue and spraying, overlapping with PU upper and lower layers of non-woven fabrics and glass fiber felt, and pressing by forming press.

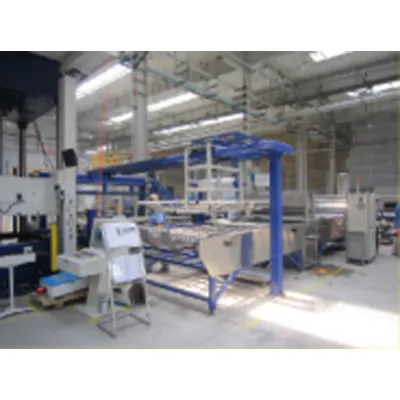

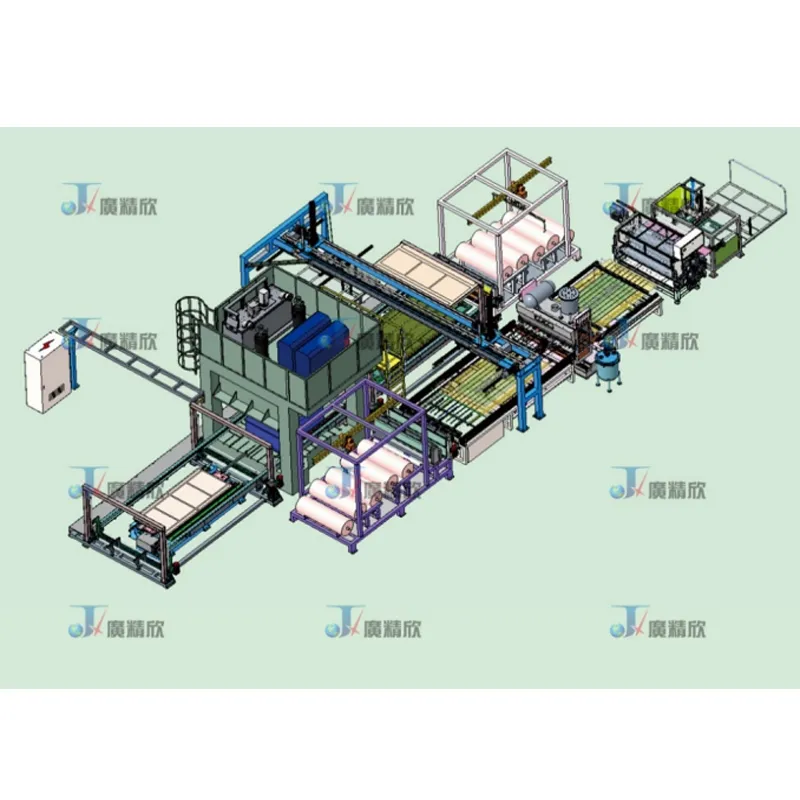

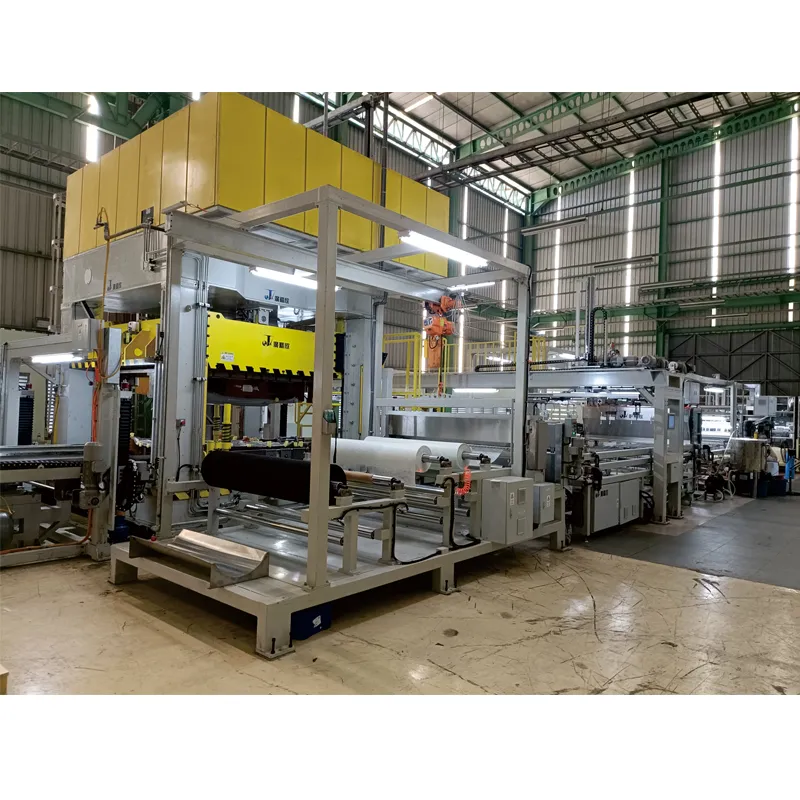

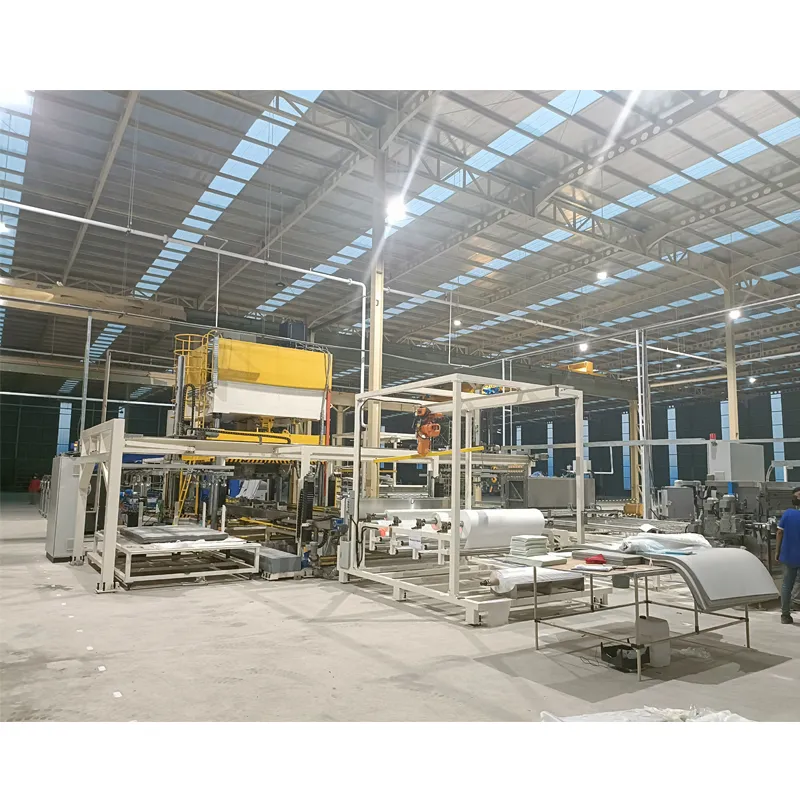

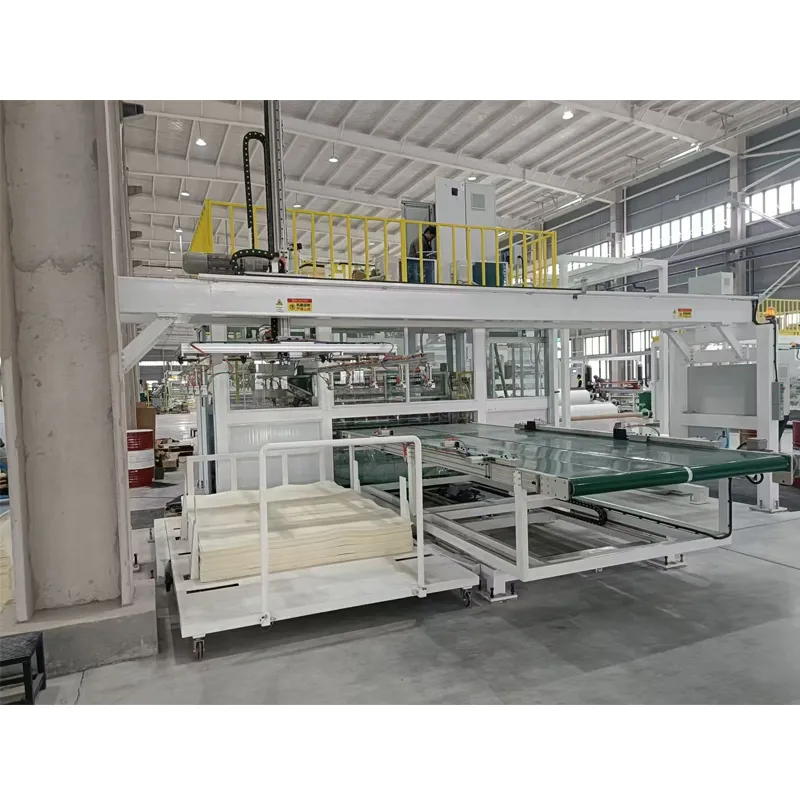

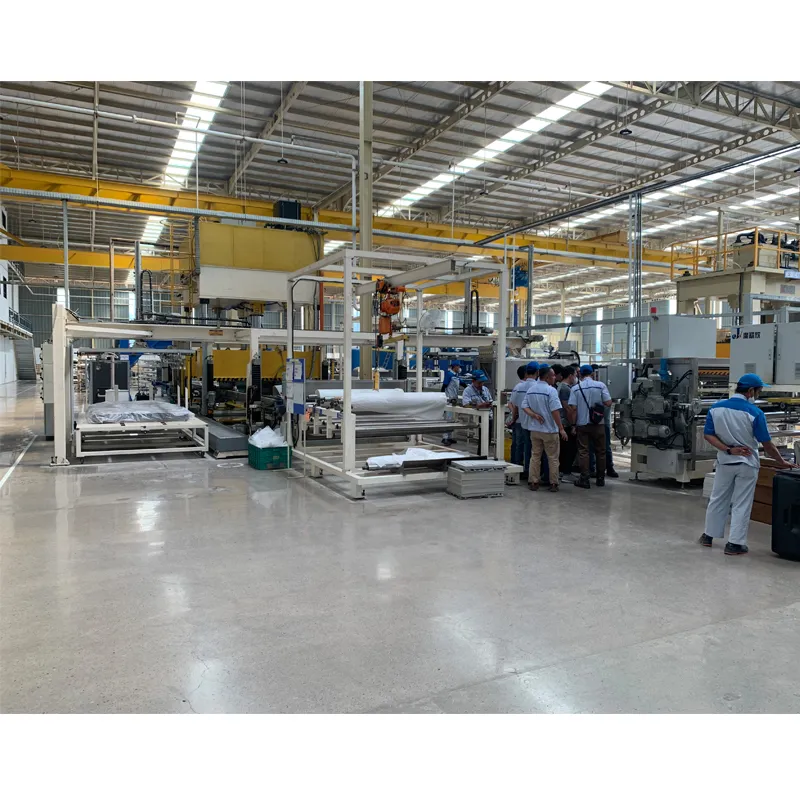

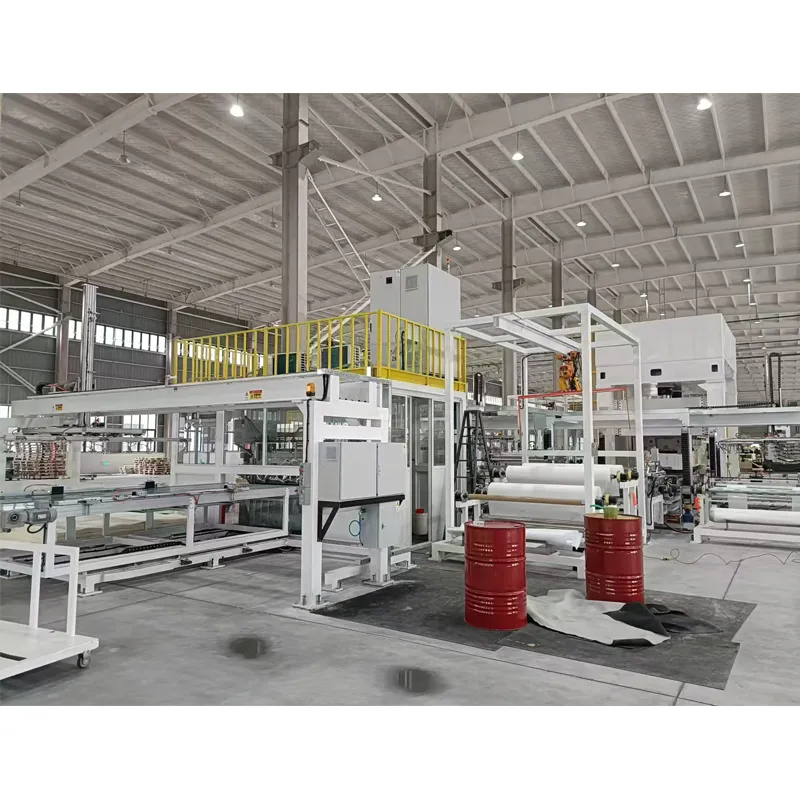

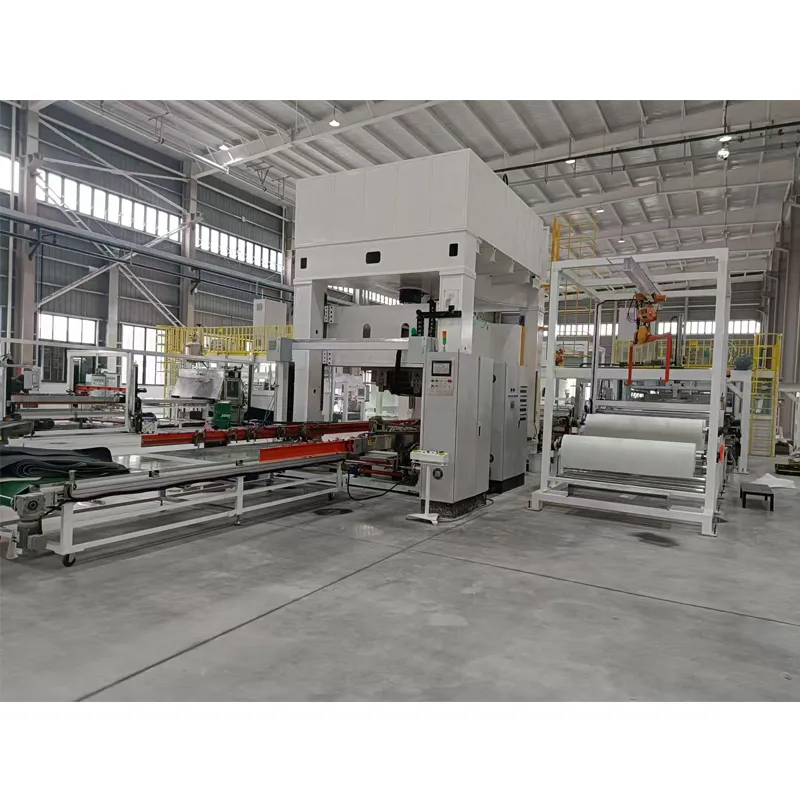

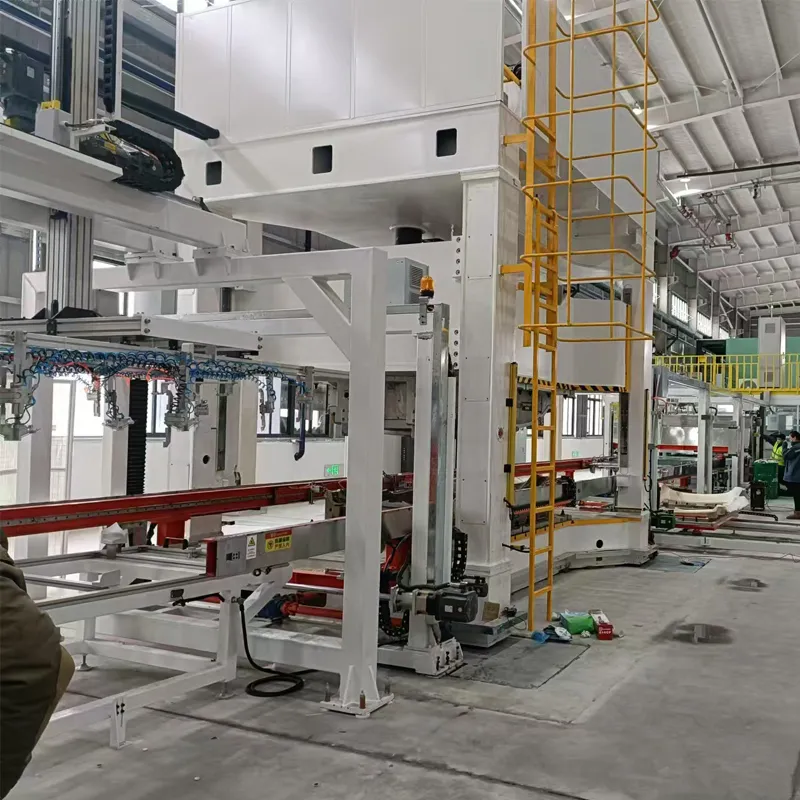

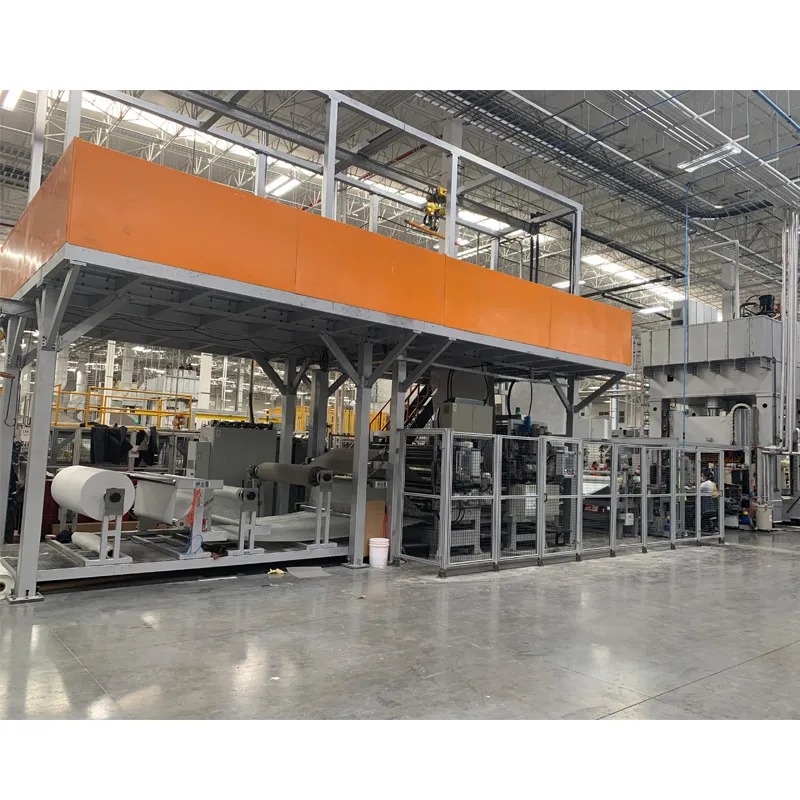

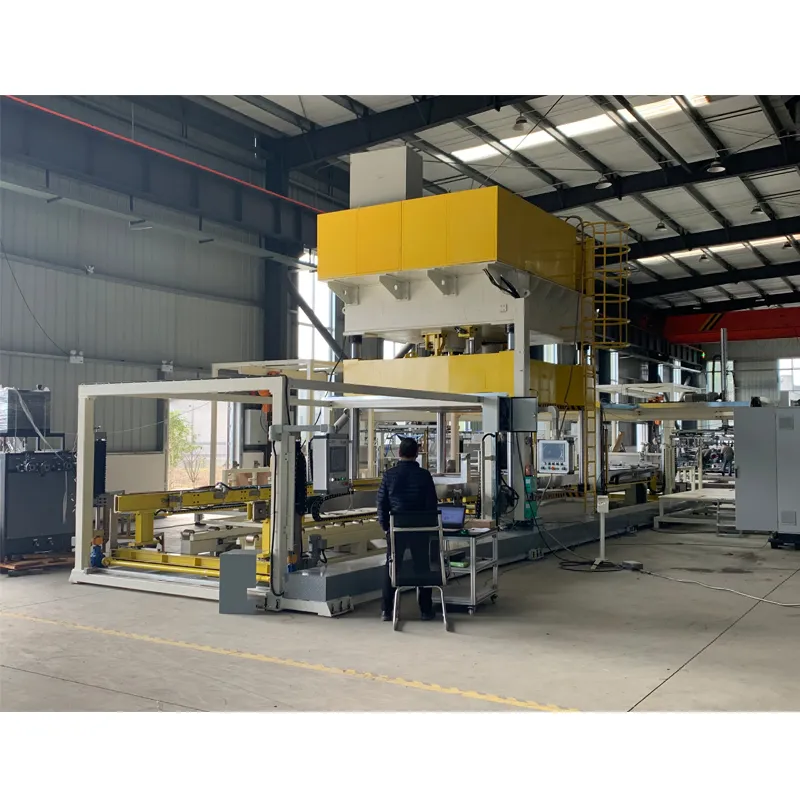

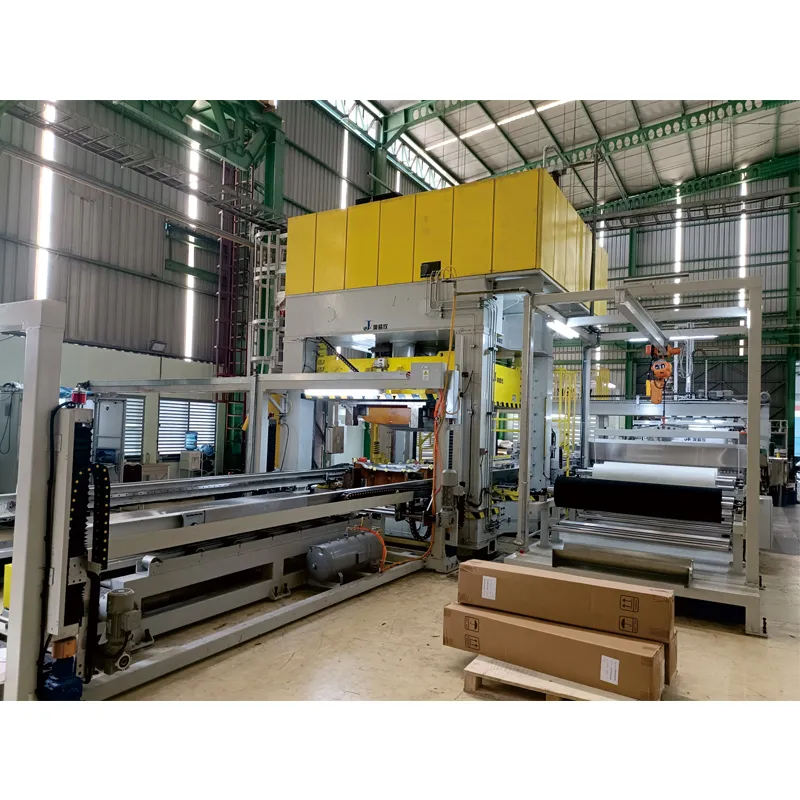

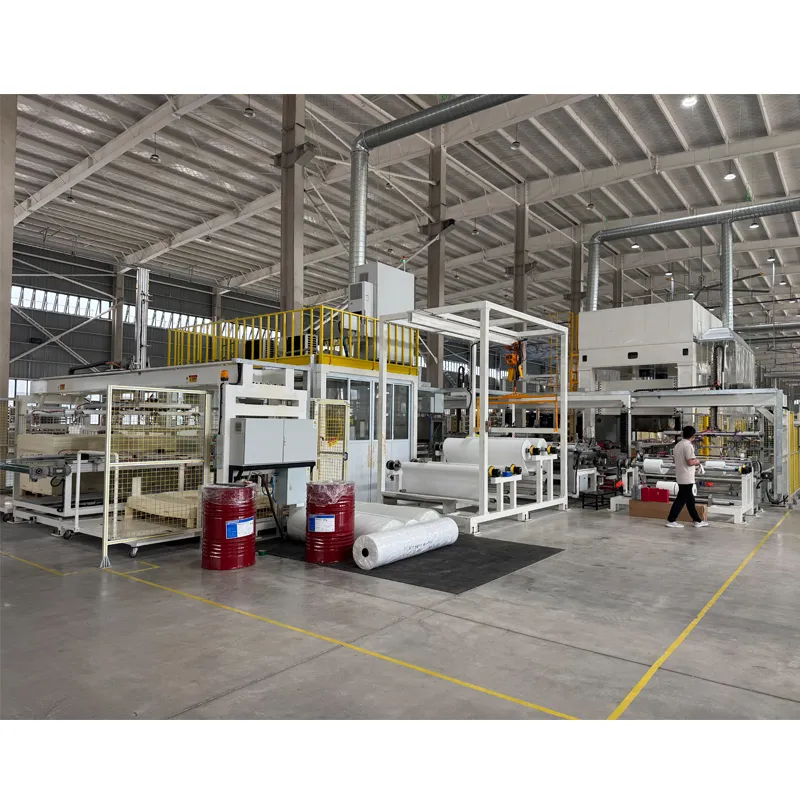

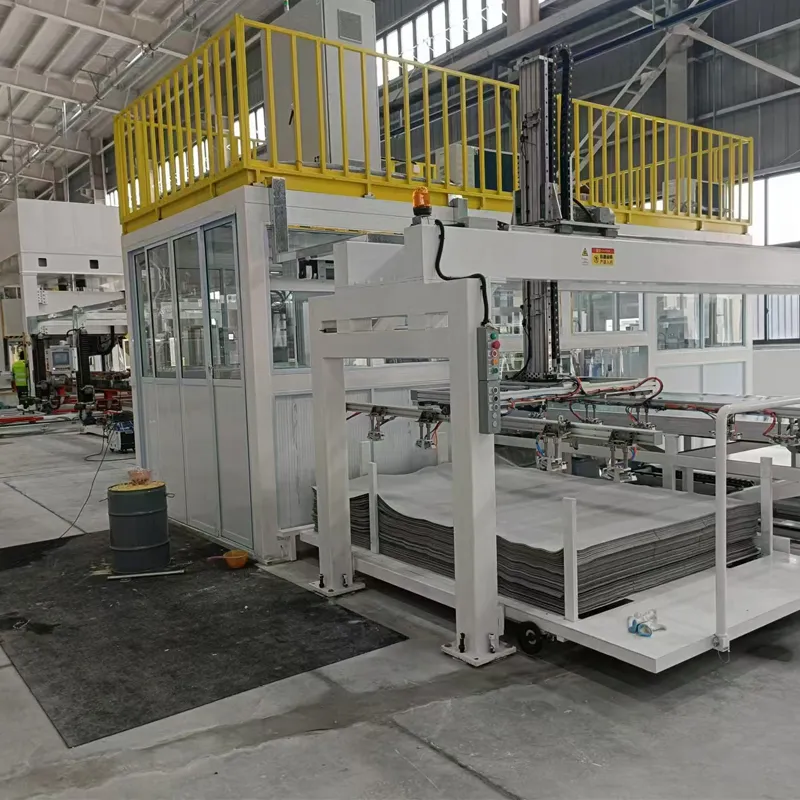

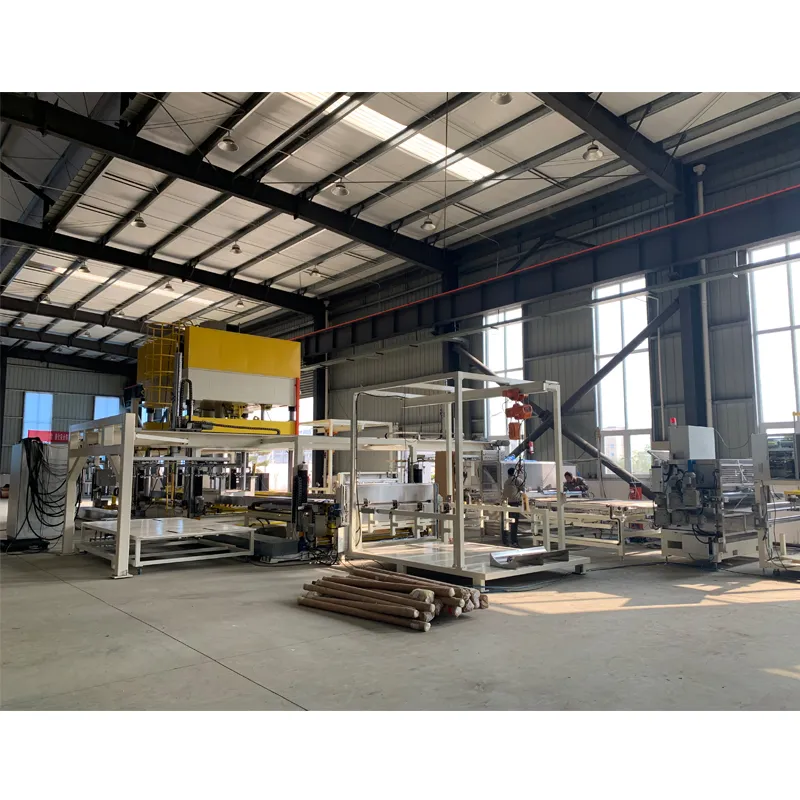

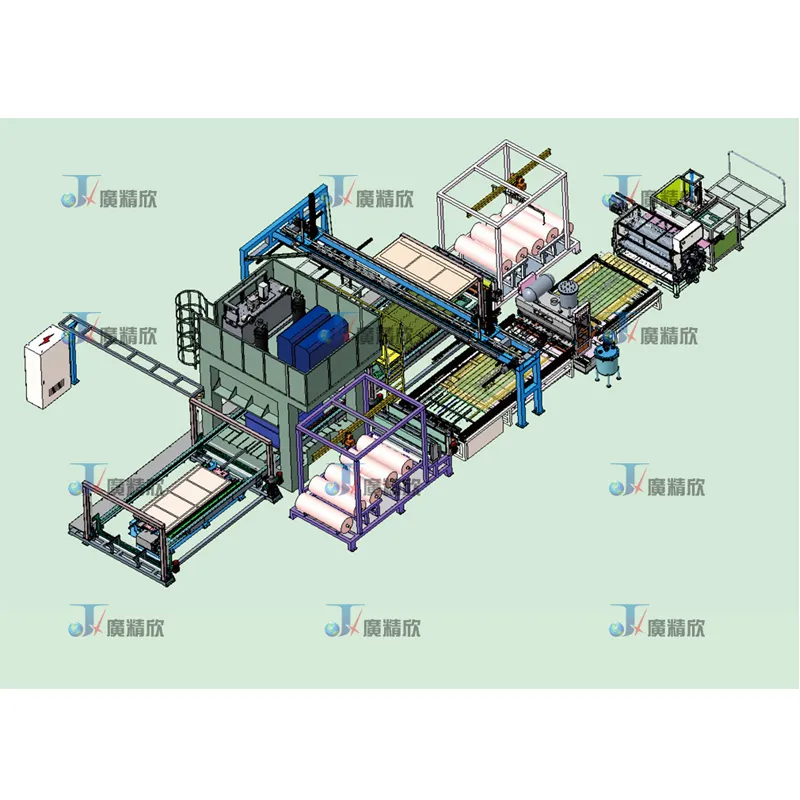

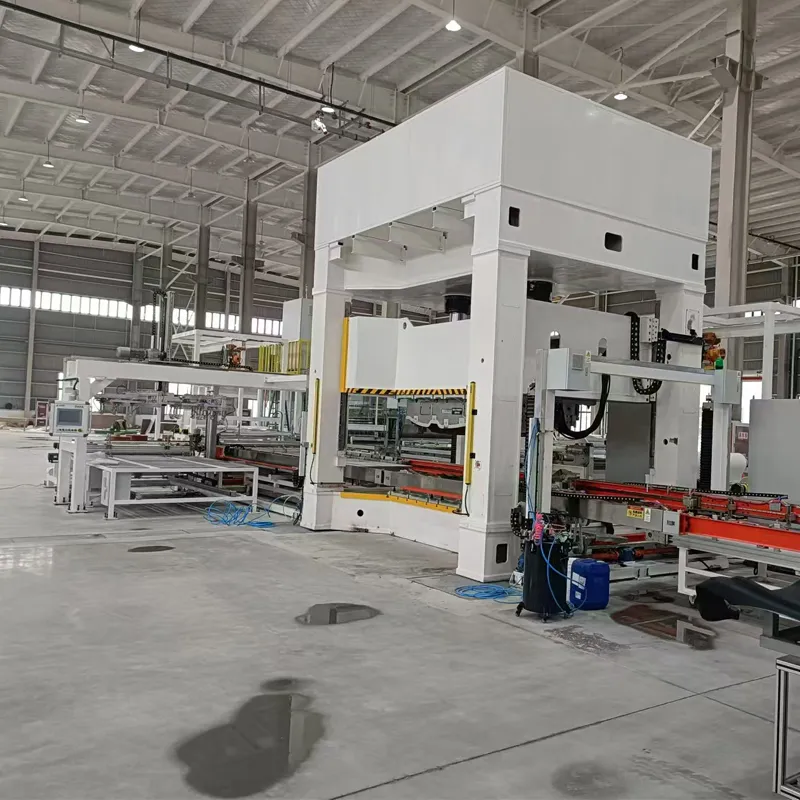

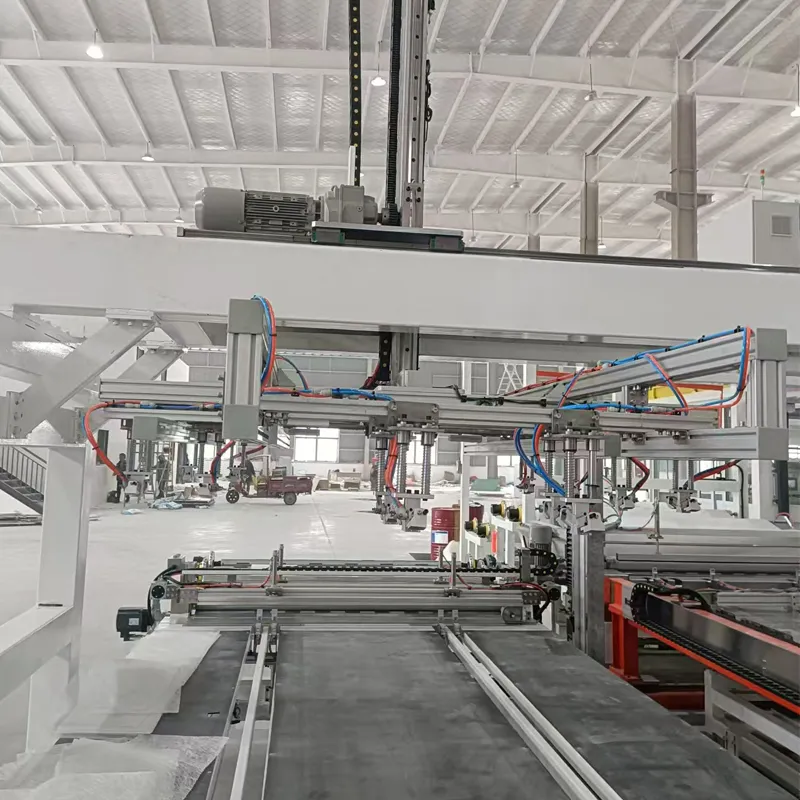

The production line is mainly composed of a PU feeding machine, a PU glue rolling machine, a conveying machine before spraying, a spraying machine, a conveying machine after spraying, a coil material feeding machine, a cutting machine, a transfer machine, a feeding mechanism, a discharging mechanism and the like; Working principle: PU lower layer adopts non-woven fabric and glass fiber felt, PU plate adopts rolling glue and spraying method, PU lower layer adopts non-woven fabric and glass fiber felt, five layers of materials are superposed and sent to the forming machine through the conveying beam, after forming and pressure maintaining, the finished product is taken out through the reclaiming gripper and sent to the manual reclaiming post or the subsequent process.
Key Features & Advantages
Automated and Precise Production
The production line is fully automated, from material feeding to final product forming. It utilizes PU glue rolling and spraying technology, ensuring even adhesive distribution and strong bonding between layers. The integration of PU foam sheets, non-woven fabrics, and glass fiber felt enhances product strength and stability.
Efficient and Cost-Effective
Labor Cost Reduction: Requires only 1-2 operators, saving 4-5 workers compared to traditional manual methods.
Material Cost Savings: The precise cutting system minimizes waste by reducing clamping distance, optimizing material utilization.
High-Speed Production: Achieves a production cycle as fast as 62 seconds per piece, significantly boosting efficiency.
Advanced Functional Modules
The line can be equipped with special functional modules to enhance production capabilities, including:
Reinforced glass fiber placement mechanism for improved structural integrity.
Sheet fabric placement mechanism for precise material alignment.
Ultrasonic warning label system for added safety and quality control.
Intelligent Management System
The production line integrates MAS management monitoring system, allowing for real-time production tracking, material scanning error prevention, and visual management. This enhances operational transparency, reduces errors, and improves overall efficiency.
