Product Description

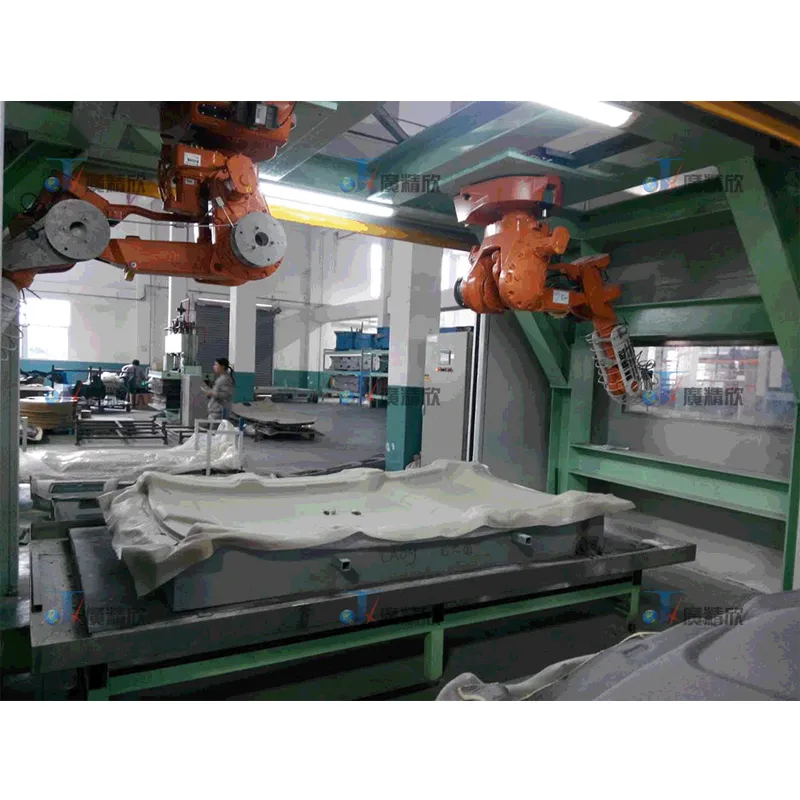

The equipment adopts 6-axis robot equipped with high-pressure water cutting system to cut the interior parts, mainly for precision cutting of the positioning holes, skylight holes, handle holes and other holes and shapes of the interior parts; the equipment adopts the upside-down structure of multiple robots, which occupies a small area, and the efficiency of multiple robots working together is higher, with the fastest rhythm up to 55 seconds/piece.
Mainly used for cutting automotive interior parts.
The equipment is mainly composed of robot, high-pressure water cutting system, product positioning mould and other mechanisms.
Working Principle
Robot Integration with High-Pressure Waterjet Cutting System: The system utilizes a 6-axis robot equipped with a high-pressure water cutting system. This allows the robot to precisely and efficiently cut through a variety of automotive interior materials, such as plastics, foams, fabrics, and composite materials. The high-pressure water cutting technique provides a clean and smooth cut, ensuring minimal material waste and high-quality edges.
Precision Cutting of Interior Components: The robot is capable of cutting intricate features such as positioning holes, skylight holes, handle holes, and various other shapes typically found in automotive interior parts. This precision is critical to ensuring that the components fit perfectly within the vehicle's design specifications, contributing to consistent quality and assembly efficiency.
Compact and Efficient Design: The system features a unique upside-down structure with multiple robots, which allows for space-saving and efficient use of the production area. The robots work in coordination to optimize cutting efficiency, with the fastest rhythm reaching 55 seconds per piece. This ensures high throughput while maintaining cutting accuracy.
Product Positioning Moulds for Precision: The cutting process is supported by product positioning moulds that ensure the automotive parts are correctly aligned during cutting. This system guarantees precision and reproducibility, crucial for meeting the tight tolerances required in automotive manufacturing.
Key Advantages of Robot High-pressure Waterjet Cutting
✅ High Precision
The combination of a 6-axis robot and high-pressure water cutting allows for precise cuts in intricate shapes and holes, such as skylight holes and handle holes, which are essential for fitting and assembling automotive interior parts.
✅ Minimal Material Waste
The water cutting process minimizes heat generation, which can distort or damage the material. It also reduces kerf width, ensuring that less material is wasted, which contributes to cost savings and sustainability.
✅ Increased Efficiency
The system's multiple-robot setup and coordinated movements improve operational efficiency, allowing for faster production cycles. The robots work in parallel, achieving up to 55 seconds per piece, which helps meet the high demands of modern automotive manufacturing.
✅ Compact and Flexible
The upside-down robot configuration saves valuable production floor space, making it an ideal solution for factories with limited room. The system's flexibility allows it to adapt to various interior parts, making it suitable for multiple applications within the automotive industry.
✅ Enhanced Quality Control
With the precision provided by the robotic system and product positioning moulds, the cutting process consistently meets the exact specifications needed for automotive interior parts, contributing to higher-quality products and reduced rework.
Applications of Robot High-pressure Water Cutting
Automotive Interior Parts: The Robot High-Pressure Water Cutting system is specifically designed for cutting automotive interior parts. This includes components like dashboard panels, door trim, seating parts, and headliners, all of which require precise cutting for functionality and aesthetics.
Complex Shape Cutting: The system excels at cutting complex shapes, such as skylight holes, handle holes, ventilation openings, and accessory mounting points in interior panels. It ensures the parts maintain their structural integrity while being accurately processed.
Material Versatility: This cutting system is suitable for a wide range of materials used in automotive interiors, including plastics, foams, fabrics, and composite materials. It can handle varied thicknesses and densities, offering flexibility across different parts of the vehicle.
Electric Vehicle (EV) Interior Components: As the demand for electric vehicles grows, the system is increasingly used in the production of EV interior components, where precision cutting is crucial for the installation of electrical systems, battery enclosures, and lightweight panels.
Prototyping and Low-Volume Production: For prototyping or low-volume production runs, the robot cutting system offers quick setup and flexibility, making it an ideal solution for manufacturers looking to develop and test new interior designs without committing to large-scale tooling investments.
Why Choose Robot High-pressure Water Cutting?
The Robot High-Pressure Water Cutting system is an advanced, efficient, and versatile solution for automotive manufacturers who require high-speed, precise cutting of interior parts. With its robotic precision, space-saving design, and cost-effectiveness, it is the ideal choice for businesses looking to improve their production efficiency, quality, and output in a competitive market. Whether you're producing automotive interiors, electric vehicle parts, or custom components, this system will deliver the consistent results you need for success.
