Product Description
Used for the molding process of an automobile interior part.

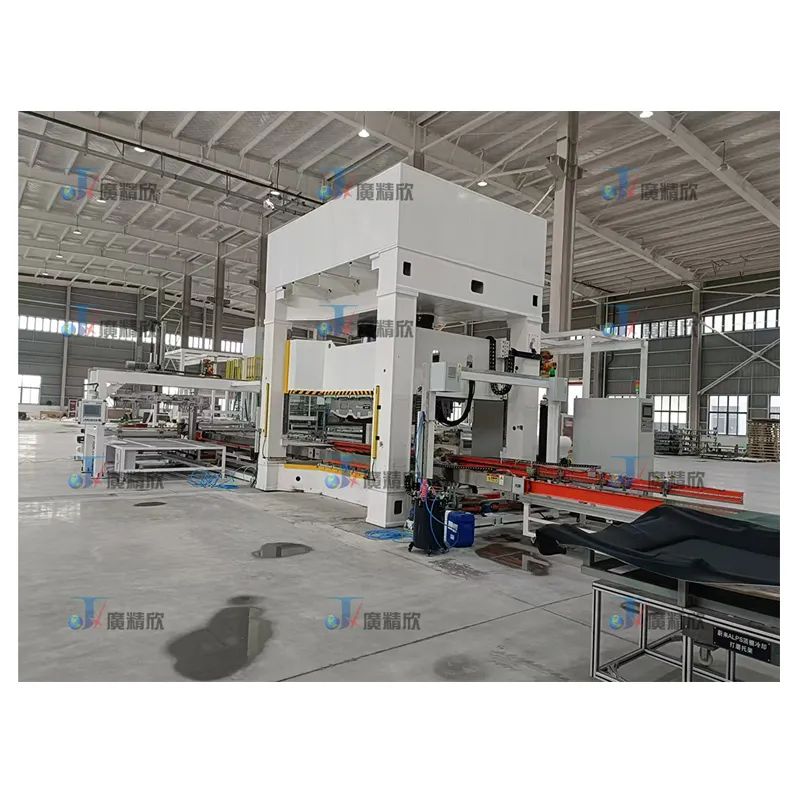

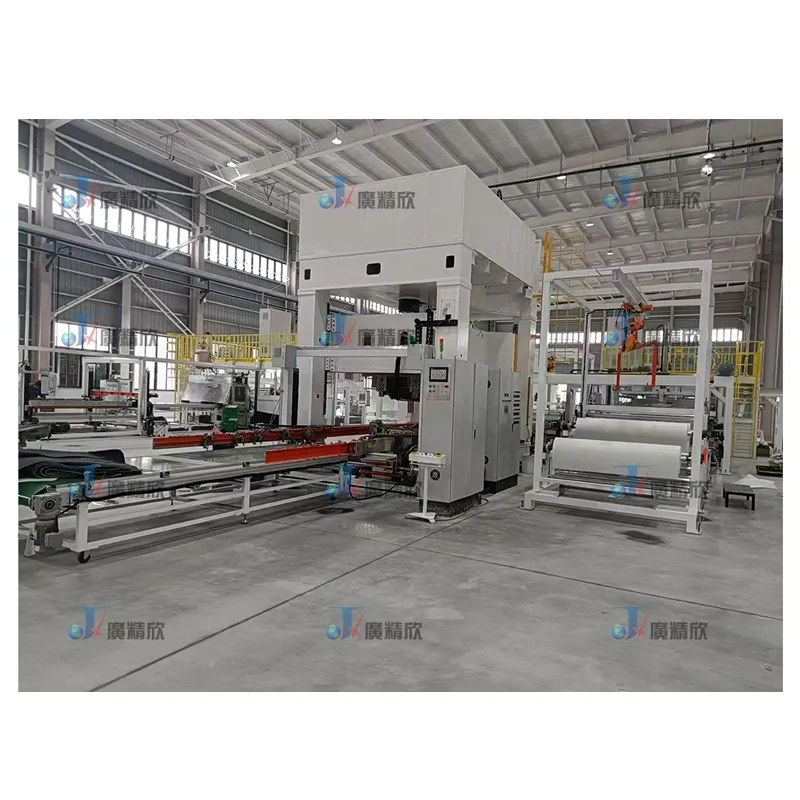

Frame structure is adopted, and servo hydraulic pump is used for lifting, with accurate control and fast response; it can be matched with auxiliary systems such as hydraulic clamping device and stripping device; it can expand hydraulic punching, mold changing and limiting mechanisms as required; the equipment is equipped with safety mechanisms such as safety light curtain and mechanical ejector rod.
Working Principle
The Hydraulic forming machine works by utilizing high-pressure hydraulic fluid to apply uniform pressure to a material, typically a metal tube or sheet, inside a mold. This pressure causes the material to conform to the mold’s shape, creating a precise part. The servo hydraulic pump ensures that the pressure is applied with high accuracy and fast response, allowing for the creation of complex geometries with minimal material waste.
The hydraulic clamping device secures the part in place during the forming process, while the stripping device aids in the efficient removal of the part after molding. Depending on the application, the system can be adjusted for hydraulic punching to add features like holes or notches in the formed part, and the mold-changing system allows for easy swaps between different molds, supporting versatile production needs.
Key Features of the Hydraulic Forming Machine
- 1.Robust Frame Structure: The machine adopts a frame structure, ensuring a sturdy foundation and high durability during the forming process. This design supports the stable operation of the machine, enabling it to withstand the intense forces involved in hydroforming.
- 2.Servo Hydraulic Pump: The servo hydraulic pump provides accurate control and fast response, ensuring consistent and precise pressure application during the molding process. This feature guarantees high-quality molded parts with minimal variation, even for intricate and complex designs.
- 3.Versatile Auxiliary Systems: The machine can be integrated with auxiliary systems such as hydraulic clamping devices and stripping devices, enhancing its flexibility and capability. These systems enable smooth operation of the molding process by securely clamping and releasing the part during the cycle.
- 4.Expandable Features: The Hydraulic forming machineis highly customizable. It can be equipped with additional mechanisms like hydraulic punching, mold changing, and limiting mechanisms to suit specific production needs, making it adaptable for different manufacturing scenarios.
- 5.Safety Mechanisms: To ensure operator safety, the Hydraulic forming machineincludes built-in safety mechanisms like the safety light curtain and mechanical ejector rod. These systems provide protection against potential hazards during the forming process and help maintain a safe working environment.
Advantages of the Hydraulic Forming Machine
- 1.High Precision and Accuracy: The servo hydraulic pump ensures precise control of hydraulic pressure, leading to high-quality formed parts with excellent dimensional accuracy. This precision is crucial for the production of automotive interior parts, which require tight tolerances and consistent performance.
- 2.Flexibility and Customization: The ability to integrate auxiliary systems like hydraulic punching, mold-changing, and limiting mechanisms provides manufacturers with the flexibility to meet a wide variety of production demands. The Hydraulic forming machinecan be easily adapted to produce different types of parts and shapes, enhancing operational efficiency.
- 3.Enhanced Productivity: The fast response and accurate control provided by the servo hydraulic pump enables quicker molding cycles and reduced downtime, significantly improving productivity. Additionally, the customizable features make it possible to handle multiple production requirements without needing separate machines for different processes.
- 4.Safe Operation: Safety is a priority with the safety light curtain and mechanical ejector rod, which help protect operators from injury during the molding process. These features ensure that the machine operates in a controlled and safe manner, reducing the risk of accidents and improving workplace safety.
- 5.Material Efficiency: The Hydroforming process is material-efficient, as it typically requires less material than traditional stamping or casting methods, reducing material waste. This makes it an environmentally friendly and cost-effective option for producing automotive parts.
Applications of Hydraulic Forming Machine
The Hydraulic forming machine is widely used in industries where precise, high-quality parts are required, particularly in the automotive sector. Key applications include:
Automotive Interior Parts: The Hydraulic forming machine is ideally suited for producing complex automotive interior components, such as door panels, instrument panels, and center consoles, which require high precision and complex geometries.
Automotive Exterior Components: It is also used to form exterior parts like bumper beams and structural components that must withstand high stress while maintaining shape and strength.
Aerospace Industry: The Hydraulic forming machine can be adapted for use in the aerospace industry to produce lightweight, high-strength components for aircraft interiors and structural parts.
Medical Equipment Manufacturing: The precision of the Hydraulic forming machine allows for the production of high-precision parts used in medical devices, such as support frames and enclosures.
Consumer Electronics: The machine is capable of producing components for consumer electronics that require intricate molding, such as casing components or structural frames.
Why Choose the Hydraulic Forming Machine?
The Hydraulic forming machine offers high precision, flexibility, and fast response, making it an ideal solution for industries that demand high-quality molded parts. Its ability to be customized with auxiliary systems and safety features ensures it can meet a wide range of production needs while maintaining operator safety. The material-efficient hydroforming process and increased productivity make it a valuable investment for manufacturers looking to optimize their molding operations.
